Generating Sets
CLASSIC GENERATING SETS
The CLASSIC range represents the highest quality of gasoline generating sets in a simple configuration.
– 12-month warranty worldwide
– Spare parts within 48 hours from the date of order
3000 rpm
Gasoline
Technical specifications
configuration
– 4-stroke Honda, Briggs and Stratton engine.
– Pull-start with rope.
– Electric start.
– Italian alternators.
– Among the lightest and most compact generating sets in the category.
– Voltage regulator (AVR).
power
– Power: from 3,5 kVA to 20 kVA.
– Output voltage available at 230V and 400V.
ELECTRICAL PANEL
– Mounted on the alternator, making the machine very compact and easy to use.
OPTIONS
– Trailer kit (supplied disassembled).
– Automatic panel with mains/set switching.
Technical specifications
classic range
| Model | PRP | STYB | Engine | No. of cylinders | Power | Displacement | Consumption | Tank | Weight | Dimensions | Version | Panel | |||
| kVA | kW | kVA | kW | HP/kW | CC | Lt/Hr | Lt | Kg | mm | ||||||
| C3500 | 3.5 | 3.1 | 3.8 | 3.4 | GX200 | 1 | 4,4/3,3 | 196 | 1.1 | 3.1 | 38 | 625x390x435H | S | 1x16A 3P CEE + 1xSchuko | |
| C5000 | 5 | 4.5 | 5.5 | 4.95 | GX270 | 1 | 6.2/4.6 | 270 | 1.6 | 5.3 | 58 | 780x510x500H | S | 1x16A 3P CEE + 1xSchuko | |
| C5000E | 5 | 4.5 | 5.5 | 4.95 | GX270 | 1 | 6.2/4.6 | 270 | 1.6 | 5.3 | 80 | 780x510x500H | E | 1x16A 3P CEE + 1xSchuko | |
| C5000T | 5 | 4 | 5.5 | 4.8 | GX270 | 1 | 6.2/4.6 | 270 | 1.6 | 5.3 | 58 | 780x510x500H | S | 1x16A 5P CEE + 1x16A 3P CEE + Voltmeter | |
| C5000TE | 5 | 4 | 5.5 | 4.8 | GX270 | 1 | 6.2/4.6 | 270 | 1.6 | 5.3 | 80 | 780x510x500H | E | 1x16A 5P CEE + 1x16A 3P CEE + Voltmeter | |

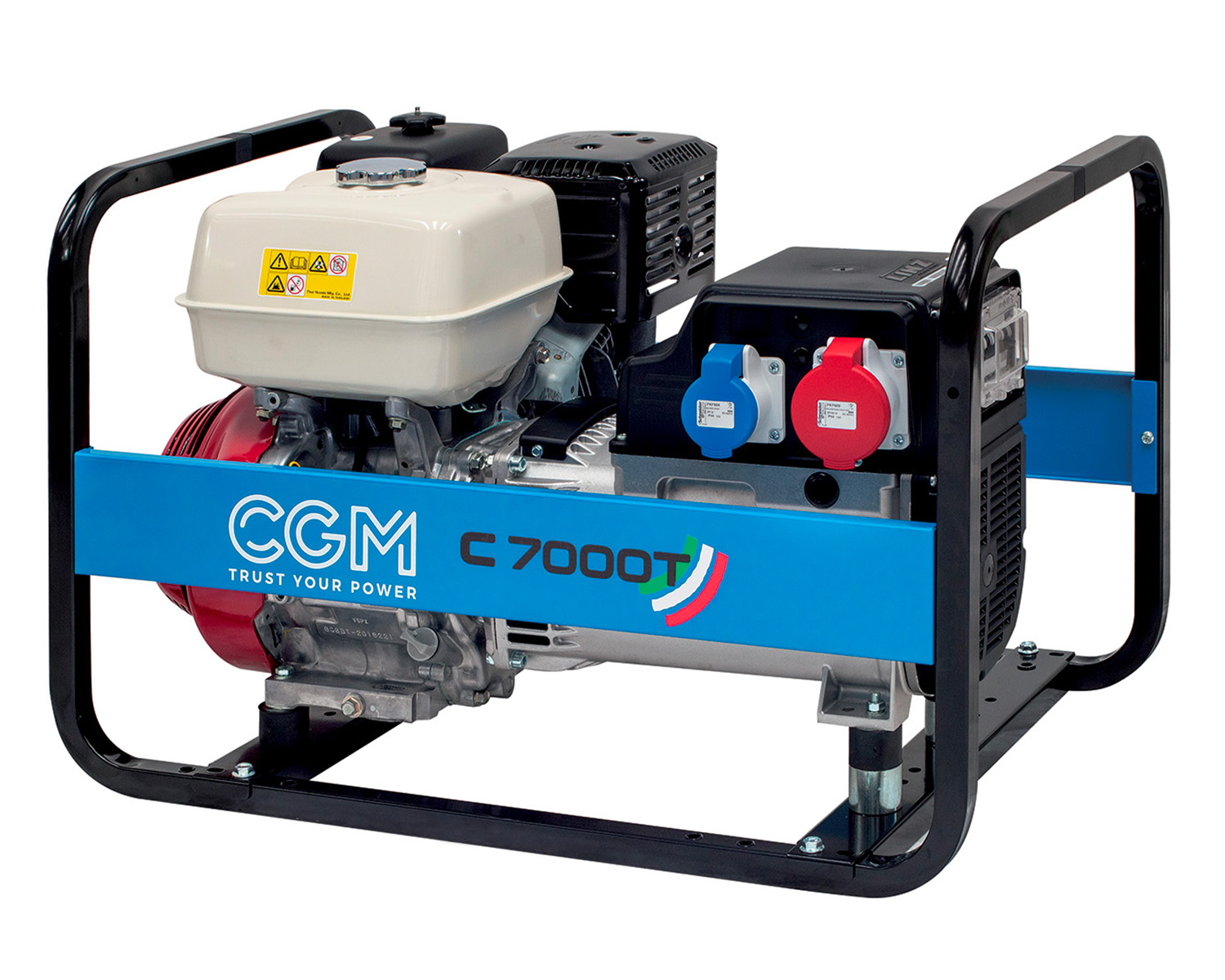

| C7000T | 7 | 5.6 | 7.7 | 6.1 | GX390 | 1 | 8.6/6.4 | 389 | 2 | 6.1 | 75 | 780x510x500H | S | 1x16A 5P CEE + 1x16A 3P CEE + Voltmeter | |
| C7000TE | 7 | 5.6 | 7.7 | 6.1 | GX390 | 1 | 8.6/6.4 | 389 | 2 | 6.1 | 82 | 780x510x500H | E | 1x16A 5P CEE + 1x16A 3P CEE + Voltmeter | |
| C11000 | 10 | 9 | 11 | 9.9 | 16HP | 2 | 16/11.8 | 480 | 3.8 | 15 | 97 | 910x580x640H | S | 1x32A 3P CEE + 1x16A 3P CEE + Voltmeter | |
| C11000E | 10 | 9 | 11 | 9.9 | 16HP | 2 | 16/11.8 | 480 | 3.8 | 15 | 125 | 910x580x640H | E | 1x32A 3P CEE + 1x16A 3P CEE + Voltmeter | |
| C11000T | 10 | 8 | 11 | 8.8 | 16HP | 2 | 16/11.8 | 480 | 3.8 | 15 | 97 | 910x580x640H | S | 1x16A 5P CEE + 1x16A 3P CEE + Voltmeter | |
| C11000TE | 10 | 8 | 11 | 8.8 | 16HP | 2 | 16/11.8 | 480 | 3.8 | 15 | 125 | 910x580x640H | E | 1x16A 5P CEE + 1x16A 3P CEE + Voltmeter | |
| C13000 | 12 | 10.8 | 13.2 | 11.8 | 18HP | 2 | 18/13.2 | 570 | 4.3 | 15 | 111 | 910x580x640H | S | 1x32A 3P CEE + 1x16A 3P CEE + Voltmeter | |
| C13000E | 12 | 10.8 | 13.2 | 11.8 | 18HP | 2 | 18/13.2 | 570 | 4.3 | 15 | 125 | 910x580x640H | E | 1x32A 3P CEE + 1x16A 3P CEE + Voltmeter | |
| C13000HE | 12 | 10.8 | 13.2 | 11.8 | GX630 | 2 | 16,1/12 | 688 | 4.8 | 15 | 125 | 910x580x640H | E | 1x32A 3P CEE + 1x16A 3P CEE + Voltmeter | |
| C13000HTE | 12 | 10.8 | 13.2 | 11.8 | GX630 | 2 | 16,1/12 | 688 | 4.8 | 15 | 125 | 910x580x640H | E | 1x32A 5P CEE + 1x16A 3P CEE + Voltmeter | |
| C13000T | 12 | 9.6 | 13.2 | 10.5 | 18HP | 2 | 18/13.2 | 570 | 4.3 | 15 | 111 | 910x580x640H | S | 1x32A 5P CEE + 1x16A 3P CEE + Voltmeter | |
| C13000TE | 12 | 9.6 | 13.2 | 10.5 | 18HP | 2 | 18/13.2 | 570 | 4.3 | 15 | 125 | 910x580x640H | E | 1x32A 5P CEE + 1x16A 3P CEE + Voltmeter | |
| C16000TE | 16 | 12.8 | 17.6 | 14.1 | 23HP | 2 | 23/17,2 | 627 | 4.9 | 15 | 125 | 910x580x640H | E | 1x32A 5P CEE + 1x32A 3P CEE + Voltmeter | |
engine and alternator brands
